How Ink Viscosity Affects PCB Inkjet Marking Performance

Inkjet marking relies on precise droplet formation. During the printing process, ink passes through a small nozzle and is ejected as controlled droplets onto the PCB surface. The viscosity of the ink directly influences this process.

When ink viscosity is within the optimal range:

• Ink flows smoothly through the printhead

• Droplets maintain stable size and direction

• Printed characters remain sharp and readable

• QR codes can be scanned reliably

• Production lines can operate continuously

However, when viscosity changes significantly, the printing performance of a PCB Inkjet Marking Machine may be affected. Inkjet systems are highly sensitive to fluid properties such as viscosity, surface tension and particle size because these factors influence droplet formation and jetting stability.

Problems Caused by High Ink Viscosity

When ink becomes too thick, it cannot flow efficiently through the nozzle.

Common issues include:

1. Nozzle Clogging

High-viscosity ink increases resistance inside the printhead and may cause ink accumulation around the nozzle. Over time, this can result in unstable ink ejection or complete blockage.

2. Poor Printing Consistency

Thicker ink may produce irregular droplets, causing:

• Uneven characters

• Broken lines

• Incomplete barcode patterns

• Reduced QR code recognition rate

3. Increased Maintenance Requirements

Frequent nozzle cleaning may be required, increasing machine downtime and reducing production efficiency.

For PCB manufacturers using automated production lines, unstable marking performance can affect the entire traceability process.

Problems Caused by Low Ink Viscosity

Low viscosity can also create printing defects.

When ink is too thin:

• Droplets may become too small or unstable

• Ink may spread after contacting the PCB surface

• Characters may appear blurred

• Marking contrast may decrease

For applications requiring small identification codes, such as 2.5×2.5mm micro QR code printing, accurate droplet control is especially important.

Why Ink Viscosity Matters for PCB QR Code and Barcode Printing

Modern electronics manufacturers increasingly require PCB traceability systems to record:

• Production batches

• Manufacturing dates

• Component information

• Inspection records

• Process history

Small QR codes and barcodes allow manufacturers to store more information within limited PCB space.

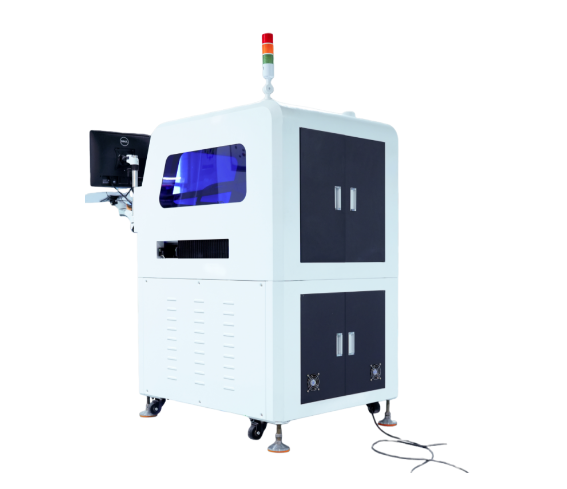

SunMoon PCB Inkjet Marking Machine supports high-precision PCB identification, including:

• QR code printing

• Barcode printing

• Text marking

• Serial number marking

• Customized symbols

The machine uses CCD vision positioning technology to achieve accurate marking with precision up to ±0.1mm, helping manufacturers maintain stable code quality during high-volume production.

How SunMoon PCB Inkjet Marking Machine Ensures Stable Printing Quality

Ink management is only one part of achieving reliable PCB marking. A complete marking system also requires precise positioning, stable mechanical movement and intelligent control.

SunMoon PCB Inkjet Marking Machine integrates multiple technologies to improve marking reliability:

CCD Vision Positioning

The built-in CCD camera automatically identifies PCB positions and adjusts printing coordinates, ensuring accurate marking even with different PCB layouts.

Non-Contact Inkjet Printing

The non-contact printing method avoids physical pressure on PCB surfaces and is suitable for sensitive electronic substrates.

High-Speed Printing Capability

The SM-PM900L model supports printing speeds up to 1148 characters per second, making it suitable for automated PCB production environments.

MES System Integration

The equipment can integrate with manufacturing management systems to support production data tracking and PCB traceability.

Maintaining Proper Ink Conditions for Long-Term Production

To keep a PCB Coding Machine operating reliably, manufacturers should pay attention to several factors:

Control Storage Conditions

Temperature changes can affect ink viscosity. Proper storage helps maintain stable ink performance.

Use Suitable Ink Materials

Different PCB surfaces may require different ink characteristics. Ink compatibility should be considered according to:

• PCB material

• Surface treatment

• Required durability

• Production environment

Regular Equipment Maintenance

Routine cleaning and inspection help prevent:

• Nozzle blockage

• Ink residue buildup

• Printing quality reduction

Improve PCB Traceability with Reliable Inkjet Marking Technology

Ink viscosity may seem like a small parameter, but it directly affects the stability, accuracy and reliability of PCB marking.

For electronics manufacturers, choosing a reliable PCB Inkjet Marking Machine helps ensure:

• Clear QR code and barcode identification

• Stable production performance

• Reduced maintenance requirements

• Improved traceability management

SunMoon PCB Inkjet Marking Machine combines precise inkjet technology, CCD positioning and automation integration to provide efficient marking solutions for PCB manufacturers and SMT production lines.

Learn more about SunMoon PCB Inkjet Marking Machine for high-precision PCB coding and traceability applications.
