To keep a solder paste storage cabinet stable, hold the refrigeration zone at 0–10°C, open the door as few times as possible, and let every jar temper inside a closed container before it reaches the print room. Stable temperature protects viscosity, prevents flux separation, and is the single cheapest defect-control step on an SMT line. Below is the operating logic, the equipment features that hold the setpoint, and a daily checklist you can hand to every shift.

Why Stable Temperature Decides Solder Paste Quality

Solder paste is a suspension of fine alloy powder, usually SAC305 or Sn63/Pb37, carried in a flux vehicle built from activators, solvents and thixotropic agents. That vehicle only works inside a narrow viscosity window. When the storage temperature drifts up, flux chemistry ages faster and the metal powder oxidizes; when it swings, rheology shifts and the paste no longer releases cleanly from the stencil aperture. The result shows up later as bridges, insufficient solder, solder balls and voiding after reflow. Because nearly 60% of SMT defects trace back to the printing process, the cabinet is where a stable board often begins.

The Recommended Storage Temperature Window

Most lead-free pastes are stored between 0 and 10°C, and many technical data sheets narrow that to 2–10°C. SunMoon intelligent cabinets control the refrigeration zone at 1–10°C and display the live value plus a temperature curve on the panel. The goal is a constant setpoint, not a number picked at random.

Why 0–10°C and Not Lower

Freezing below 0°C is the real danger. Ice formation and thermal stress can permanently separate the flux vehicle from the metal powder, and that damage cannot be stirred back. A solder paste chiller should cool, not freeze, which is why the lower limit matters as much as the upper one.

What Happens Above 10°C

Above 10°C the flux activators stay chemically active and slowly degrade, so shelf life falls and print behavior drifts. Storing paste warmer than specified also hides the problem until a batch prints badly, by which point rework has already cost more than the cold chain ever would.

How Intelligent Cabinets Hold the Setpoint

A basic domestic fridge cannot do this job. An intelligent solder paste storage cabinet earns its name through features built for material control rather than cold drinks.

• Uniform airflow from a tower-type pure electric drive structure keeps every shelf near the same temperature instead of letting cold pool at the bottom.

• A PLC controller holds the setpoint and plots a digital temperature curve so an excursion is visible the moment it starts.

• Sealed, separated storage lets different paste lots share the cabinet without cross-contact or mix-ups.

• Automatic stirring and tempering functions prepare the jar on schedule so operators never rush a cold container to the line.

Minimize Temperature Fluctuation From Door Openings

The most common source of swing is the door itself. Each draw lets warm room air in, and a cabinet opened many times per hour runs a very different profile from one opened twice a shift. Plan withdrawals in batches, train operators to close quickly, and size the unit for your real access frequency.

Temperature Recovery After Access

Recovery is how fast the zone returns to setpoint after a draw. Good insulation, strong airflow and the right refrigeration capacity shorten that window. When you evaluate a solder paste refrigerator, ask the supplier how recovery is measured under your access pattern rather than reading a single static number on a brochure.

Avoid Condensation and Thermal Shock During Tempering

Removing a jar and opening it while still cold is the single most common handling error. Moisture from the room condenses on the cold surface, soaks into the flux, and later appears as solder balls and voiding. The fix is built into modern cabinets: a tempering or temperature-recovery cycle brings the closed container to room temperature, typically 4–8 hours by size, before anyone opens it. Letting the machine do the tempering removes the temptation to shortcut the wait.

Humidity Control and the Print Room Environment

The cabinet owns the cold chain; the print room owns the working environment. After tempering, paste prints best near 23–28°C and 40–60% RH. A constant temperature and humidity machine for the printing area keeps viscosity steady so the cabinet's work is not undone at the last step. Treat the two as one system, not separate purchases.

FIFO, Traceability and Alarm Functions That Protect the Cold Chain

Temperature alone is not enough if the wrong jar is used or an excursion goes unnoticed. Two functions turn a cold box into controlled storage.

MES and Barcode Traceability

FIFO draws older stock first so nothing overstays its shelf life, while MES and barcode or RFID identification record every entry, tempering cycle and withdrawal. That log lets quality prove the material stayed in range and stops an out-of-spec batch before it reaches the stencil printer. An 600-bottle cabinet on a high-mix line is only safe when every one of those bottles is individually traceable.

Choosing a Cabinet That Matches Your Paste Specification

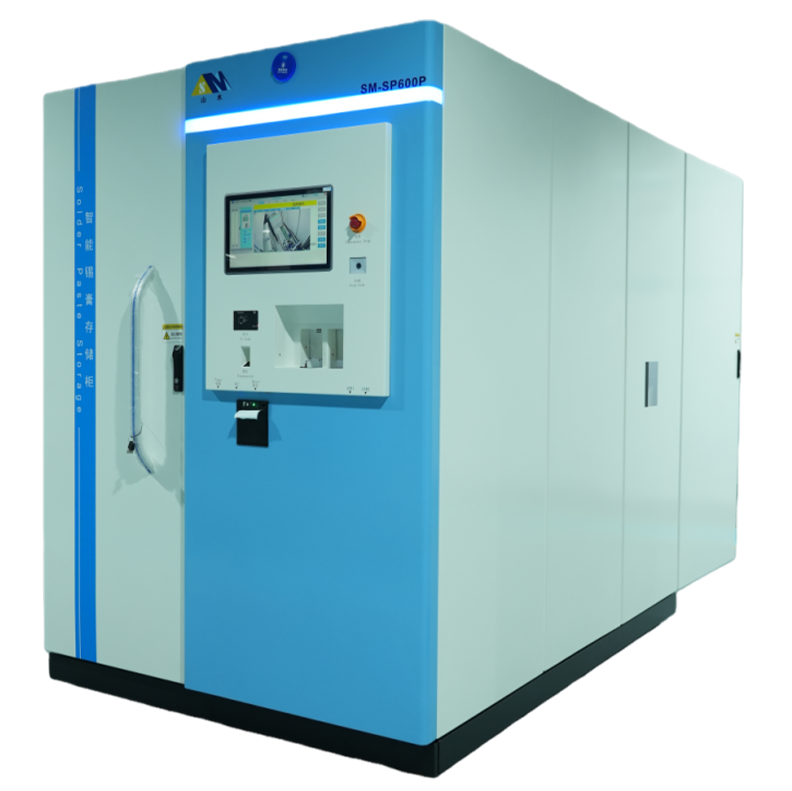

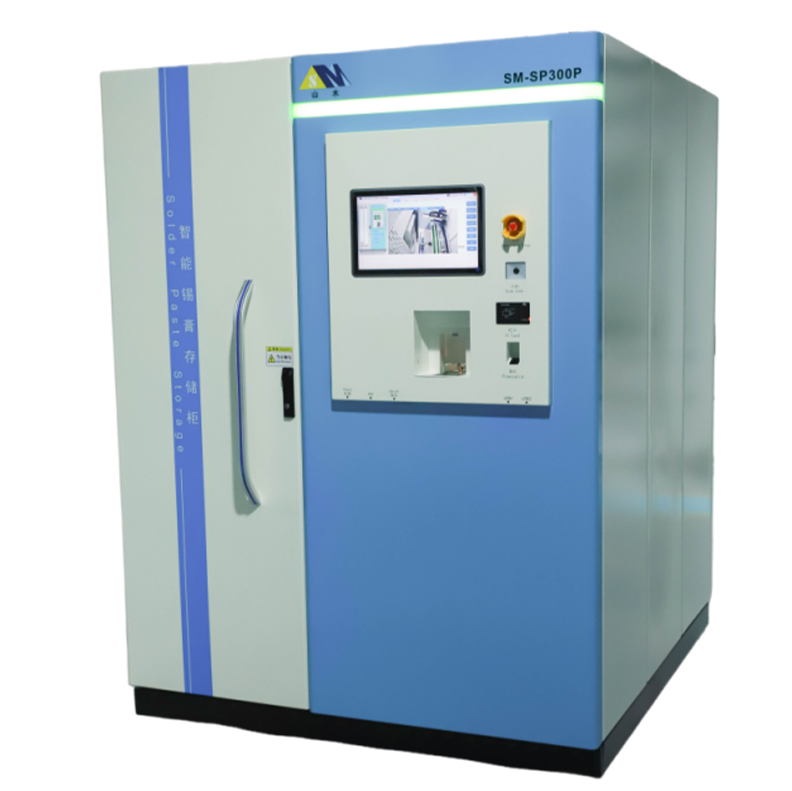

Start from the solder paste technical data sheet, not a catalog volume. Confirm the required range in °C, your maximum stock and daily withdrawals, then validate the internal layout with your real container dimensions. SunMoon offers 200-bottle, 300-bottle and 600-bottle intelligent cabinets, all with refrigeration, tempering, stirring, FIFO and MES, and all certified to ISO 9001, ISO 14001 and CE. If your site runs aerospace or automotive work, review the military and aerospace or automotive electronics solutions where audit-grade traceability matters most. Pair the cabinet with an intelligent steel mesh storage cabinet so stencils get the same disciplined control.

Daily Checklist to Keep the Cabinet Stable

• Confirm the setpoint sits inside the paste supplier's approved 0–10°C window at shift start.

• Check the live temperature curve and alarm log before production begins.

• Batch withdrawals so the door opens the fewest times per shift.

• Verify every jar tempered to room temperature while still closed before opening.

• Enforce FIFO and keep used and fresh paste in separate, labeled containers.

• Hold the print room near 23–28°C and 40–60% RH during printing.

• Review the MES record so any excursion is caught and disposed of by procedure.
