PCB legend printing is an important process in PCB manufacturing, providing essential identification information such as component references, logos, model numbers, production codes and traceability marks. With the development of automated manufacturing, PCB Legend Inkjet Printing has become an efficient solution for applying clear and accurate markings directly onto PCB surfaces.

One of the key decisions during PCB legend printing is choosing the right ink color. White and black ink are the two most commonly used options, and the selection mainly depends on PCB surface color, contrast requirements and application conditions.

Choosing the correct ink helps improve marking readability, inspection efficiency and code recognition performance, especially when printing small characters, barcodes or QR codes.

Why Ink Color Matters in PCB Legend Inkjet Printing

In PCB manufacturing, legend marks must remain clearly visible throughout production, inspection and assembly processes.

The ink color directly affects:

• Printing contrast

• Character readability

• Machine vision recognition

• Barcode scanning performance

• Long-term identification reliability

For traditional PCB legend printing, the most important requirement is not simply the color itself, but whether the printed information creates enough contrast with the PCB surface.

For example:

• White ink provides excellent visibility on dark solder masks.

• Black ink is more suitable for light-colored PCB surfaces.

White Ink for PCB Legend Inkjet Printing

White ink is the most widely used option for PCB legend applications because it provides strong contrast on commonly used PCB colors.

It is especially suitable for:

• Green solder mask PCBs

• Black PCBs

• Blue PCBs

• Red PCBs

• Dark-colored electronic substrates

Advantages of White Ink

High Contrast on Dark PCB Surfaces

Most PCBs use dark solder mask colors. White ink creates clear and easy-to-read markings, making it suitable for:

• Component reference numbers

• Product labels

• Logos

• Serial numbers

• PCB identification codes

Better Visual Inspection

High-contrast white markings allow operators and inspection systems to identify printed information more easily during PCB assembly and quality control.

Suitable for Automated Traceability

For manufacturers using automated production systems, clear markings are important for:

• QR code reading

• Barcode scanning

• Production tracking

White ink is often preferred when PCB traceability information needs to be recognized quickly and accurately.

Black Ink for PCB Legend Inkjet Printing

Black ink is mainly used when printing on light-colored PCB surfaces where dark markings provide better contrast.

Typical applications include:

• White solder mask PCBs

• Light-colored substrates

• Special PCB designs requiring dark legend marks

Advantages of Black Ink

Strong Contrast on Bright Surfaces

On white or light-colored PCBs, black ink provides clear visibility and sharp character definition.

Suitable for Special PCB Applications

Some PCB manufacturers choose black ink to match specific product designs or visual requirements.

However, using black ink on dark PCB surfaces may reduce readability because the contrast between the ink and substrate becomes insufficient.

White Ink vs Black Ink for PCB Legend Printing

How to Choose the Right Ink for PCB Legend Inkjet Printing

When selecting ink for PCB legend printing, manufacturers should consider several factors.

1. PCB Surface Color

The PCB background color is the first factor to evaluate.

General guideline:

• Dark PCB surface → White ink

• Light PCB surface → Black ink

The goal is always to achieve maximum contrast between the printed mark and the PCB surface.

2. Printing Content Requirements

Different marking content may have different requirements.

For example:

• Small characters require clear edge definition.

• QR codes require accurate dot formation and high contrast.

• Barcodes require stable printing quality for reliable scanning.

For micro marking applications, such as 2.5×2.5mm micro QR code printing, ink stability and printing accuracy become especially important.

3. Production Environment

Modern PCB manufacturing often requires more than simple text printing. Manufacturers may need to track:

• Production batches

• Manufacturing dates

• Product serial numbers

• Inspection records

Therefore, PCB legend printing equipment should provide stable printing performance and support integration with production management systems.

PCB Legend Inkjet Printing with Advanced Marking Equipment

Ink selection is important, but the performance of the PCB Inkjet Marking Machine also directly affects final marking quality.

A reliable PCB marking system should provide:

• Accurate positioning

• Stable inkjet performance

• Consistent printing quality

• Easy production integration

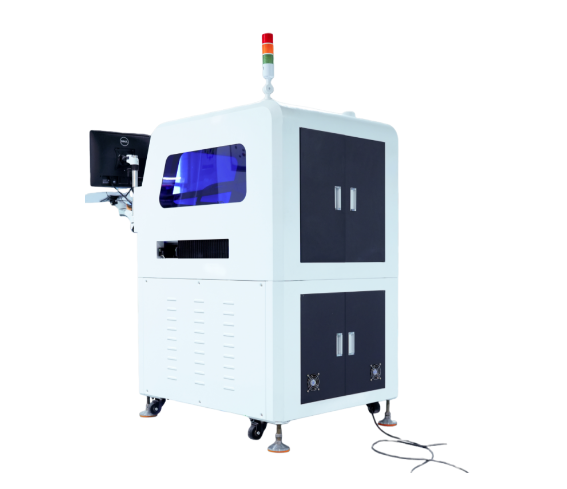

SunMoon PCB Inkjet Marking Machine SM-PM900L is designed for PCB identification and traceability applications. It supports:

• PCB legend printing

• QR code marking

• Barcode printing

• Text and serial number marking

The machine integrates CCD vision positioning technology with high-precision inkjet printing to achieve accurate marking performance with printing precision up to ±0.1mm.

It also supports 2.5×2.5mm micro QR code printing, helping manufacturers meet the increasing demand for compact and traceable PCB identification.

Improve PCB Traceability with the Right Ink and Printing System

Selecting between white and black ink for PCB Legend Inkjet Printing depends mainly on PCB surface color, contrast requirements and production applications.

White ink is generally the preferred choice for dark PCB surfaces, while black ink provides better results on light-colored substrates.

However, achieving consistent PCB marking quality requires both suitable ink selection and reliable printing equipment.

SunMoon PCB Inkjet Marking Machine provides a complete solution for PCB legend printing, barcode marking and QR code traceability, helping electronics manufacturers improve production efficiency and identification accuracy.

Learn more about SunMoon PCB Inkjet Marking Machine for advanced PCB legend and traceability printing applications.
