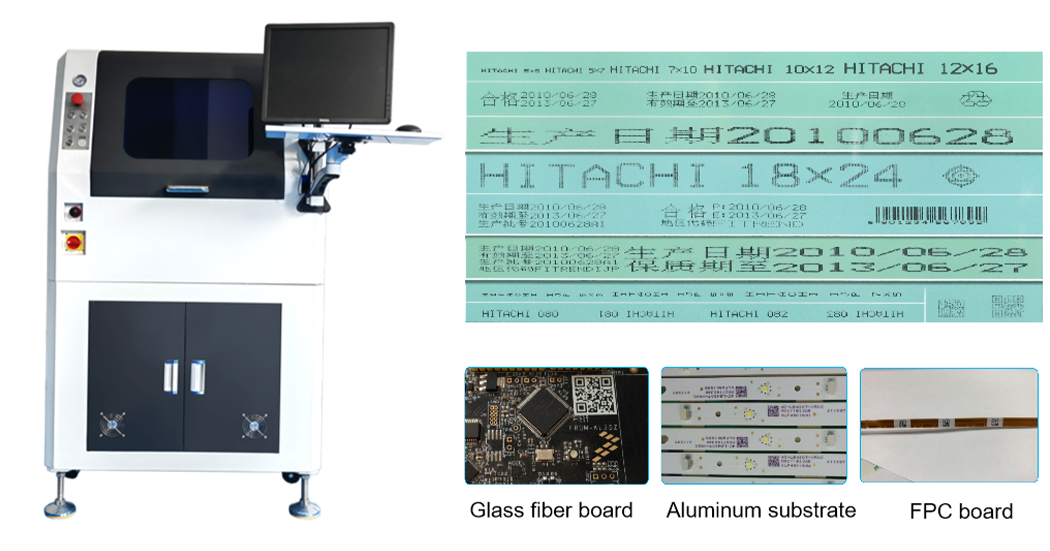

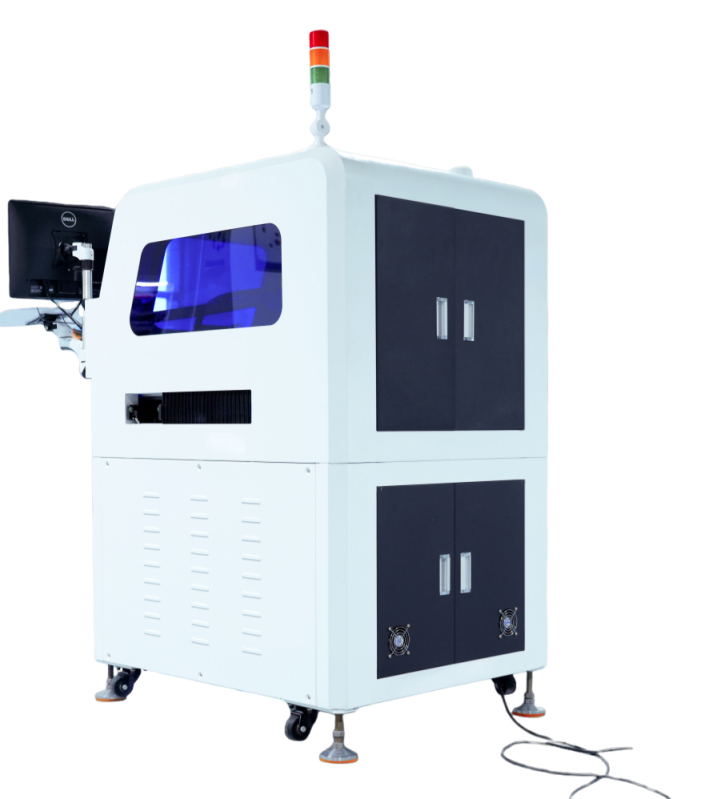

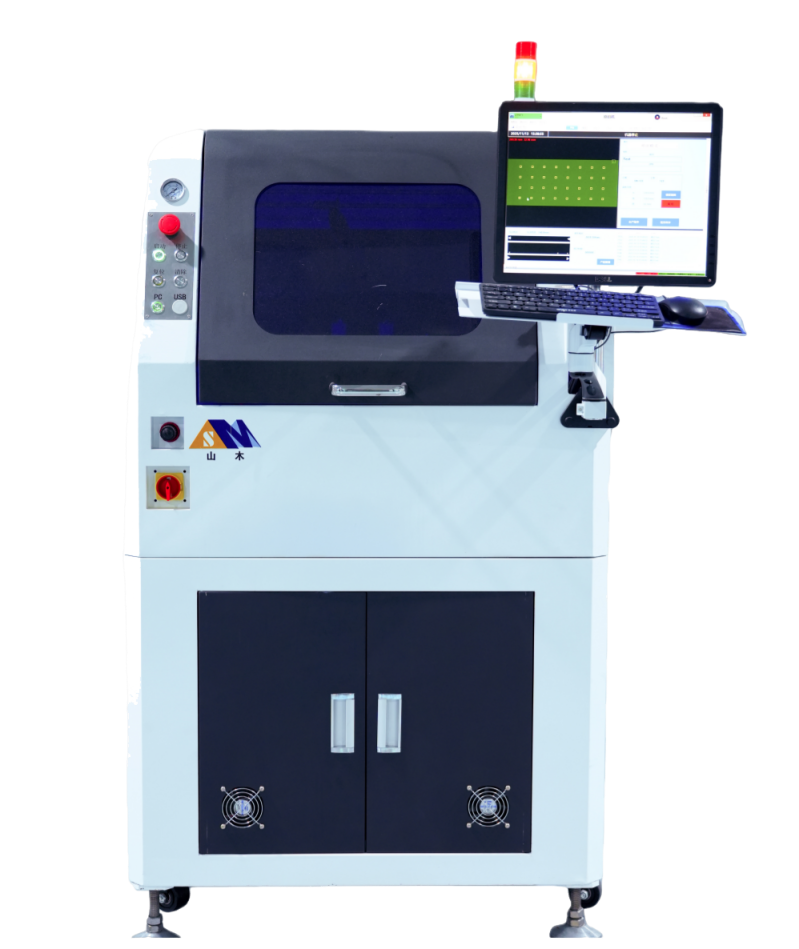

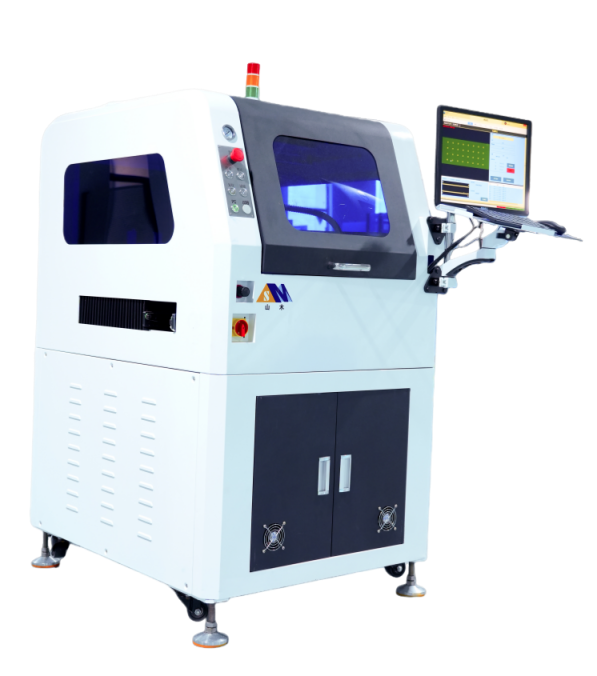

Fully Automatic Online Contactless Inkjet Printer

Inkjet Printer Configuration

KGK (Japan)

Medium character

Small characters

Micro-character

Inkjet Marking Size

8-15mm

5-8mm

2-5mm

Jet printing speed

1148 characters per second (machine operation time approximately 0.6 seconds per piece)

Jetting direction

X/Y+360-degree all-around printing

Characters that can be printed

Uppercase and lowercase English letters, Arabic numerals, and common symbols, user-defined characters, incrementing numbers or decrementing numbers, can skip the set character

Barcode

Code39, ITF, NW-7, EAN-13, EAN-8, UPC-A, UPC-E, Code128

QR code

QR Code, Mata Matrix

Jet Code Precision

± 0.1mm

Fixed edge

Fixed in advance

Substrate applicable size

Min 50*50mm ; Max 380*500mm

Substrate thickness

0.3-5.0mm

Substrate weight

Max 3.0Kg

Code reading method

Default to CCD camera decoding, with optional industrial decoder

Default to CCD camera decoding,

with optional industrial decoder

Control card + industrial computer + monitor

Exercise methods

X,Y. Uses Japanese Fuji servo motor + TB1 lead screw, and angle uses Japanese Shinko stepper motor

Structure

The rack is made of a steel frame structure and is processed as an integrated unit.

Machine dimensions

(L*W*H) 900*1100*1600mm

Power Supply Voltage

AC 220V/50HZ

Working Mode

Online/Offline

Marking method

Inkjet

Laser

Jet printing (dot matrix)）

Carving (Line/Point)

Surface-insensitive non-contact

Surface-sensitive contact

Consumables

yes

no

minimum point diameter

40um

11um

Color

Black/White (High Contrast)

Gray (low contrast)

Surface effect

Dot matrix (erasable with high-temperature dedicated potion before high temperature)）

Dot matrix (erasable with high-temperature dedicated potion before high temperature)）

Minimum QR Code Size

2.0*2.0mm

0.5*0.5mm

Speed efficiency

Fast

Slow

Price cost

Low

High
