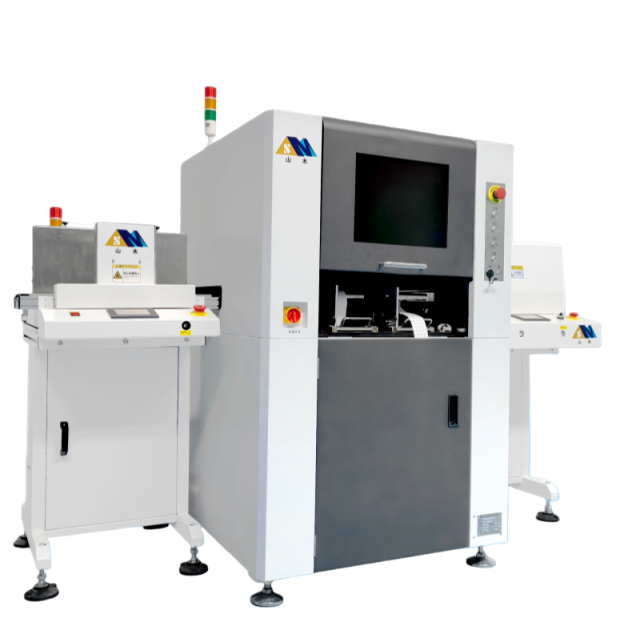

Labeling Machine

• Machine dimensions: L:1110 W:1300 H:1600

• Labeling range: 330*300mm

• Industrial Control: For Advantech industrial control, ensuring more stable and reliable operation.

• Servo system: MITSUBISHI

• Weight: ≈ 600kg

• Input power: AC ~220V 2KW

• Labeling speed: within 1.5s/pc

• Label size: Min:4*4mm, Max:50*100mm. Product dimensions: 22*17mm/21*16mm/16*12mm/10*10mm/15*13mm

• Labeling angle: 0~360 degrees

• Nozzle quantity: 4 sets

• MARK positioning: MARK positioning correction, using the camera to assist in determining whether the PCB board is placed correctly to avoid deviation.

• Labeling method: Industrial printer (print and apply immediately).

• Basic functions: Leakage detection, top plate clamping, automatic track adjustment.

• Board feeding direction: left in, right out, using tracks for board feeding and discharging。

• Board thickness: 0.6-5mm, the board thickness can accommodate more types of PCBs.

• Configuration options: Deviation correction function, barcode reading function. Labels must not be misapplied, wrinkled, bubbled, lifted, dirty, damaged, or skewed beyond the shield cover edge.

• After the panel is separated, the material is placed in standard trays, and the trays are stored in a magazine-style manner.

• data collection, communication protocol

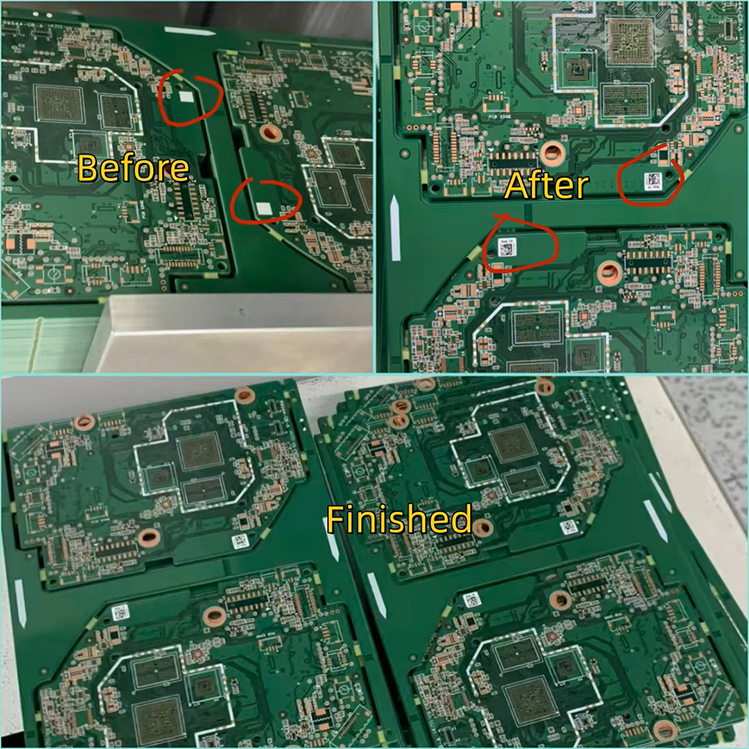

•Label style

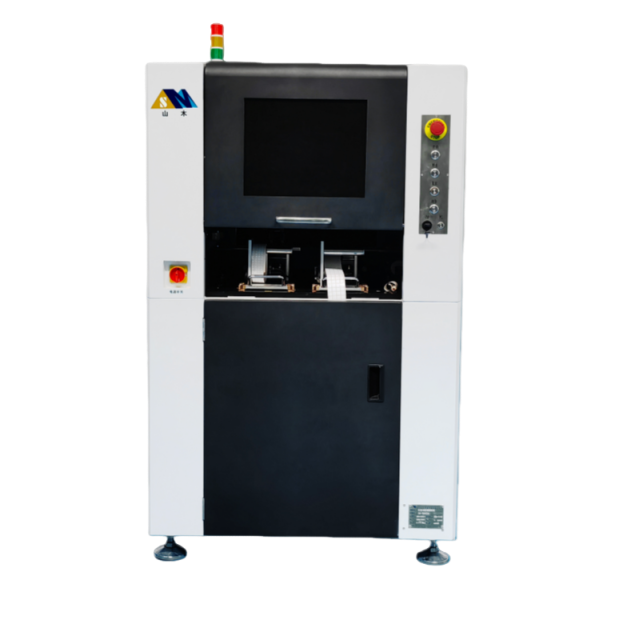

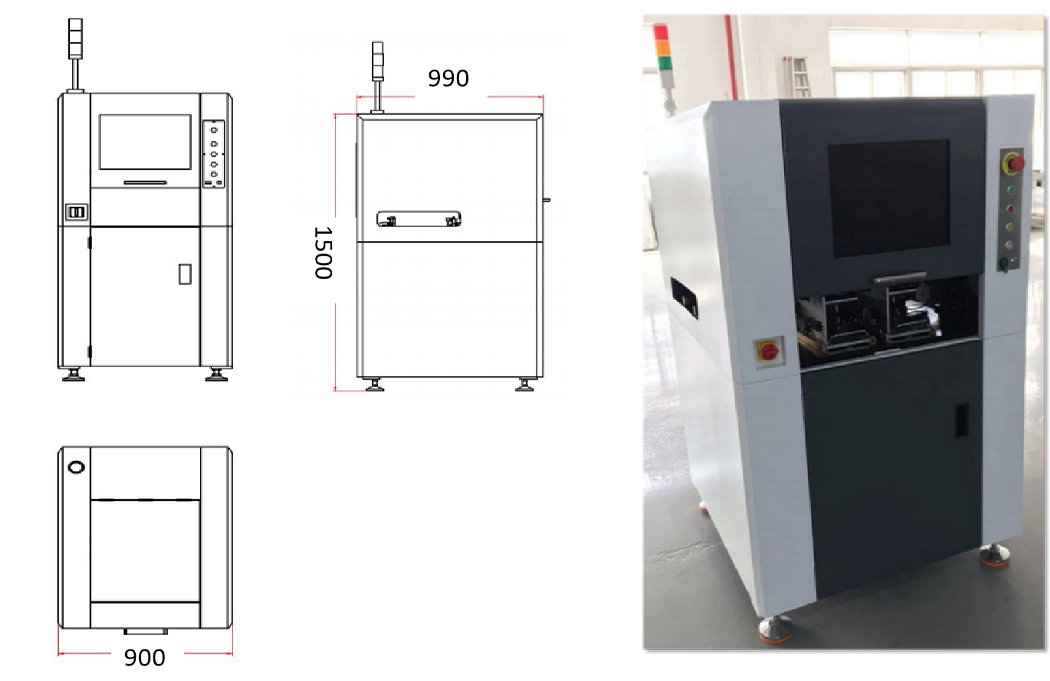

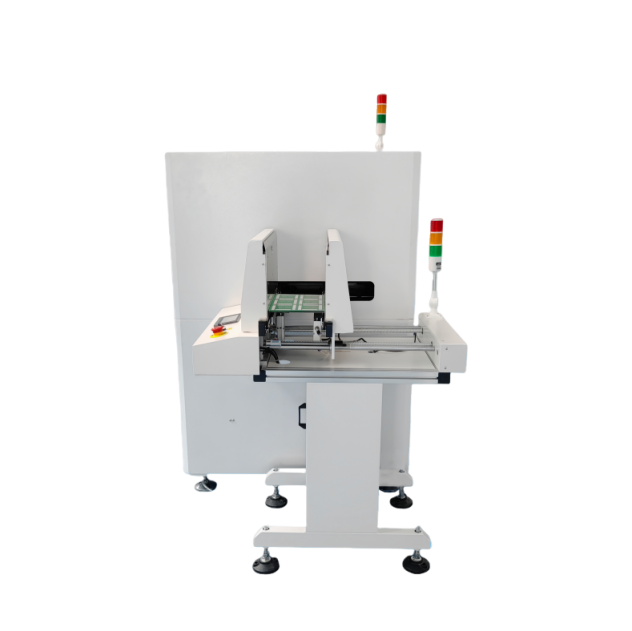

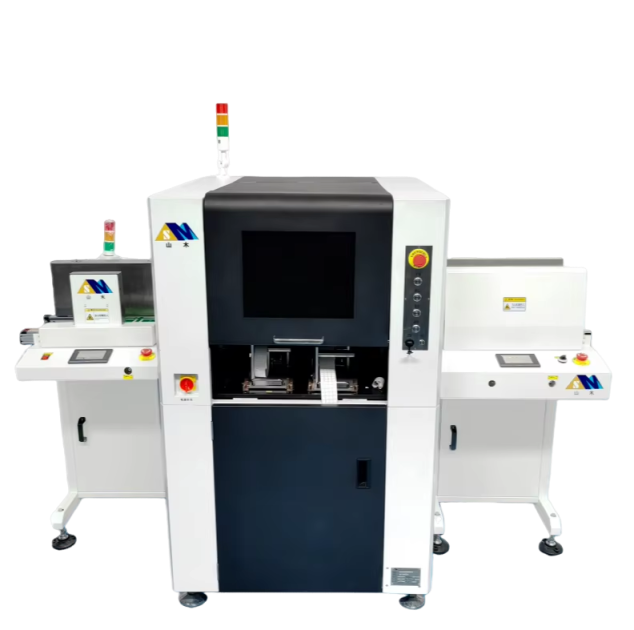

Equipment Appearance

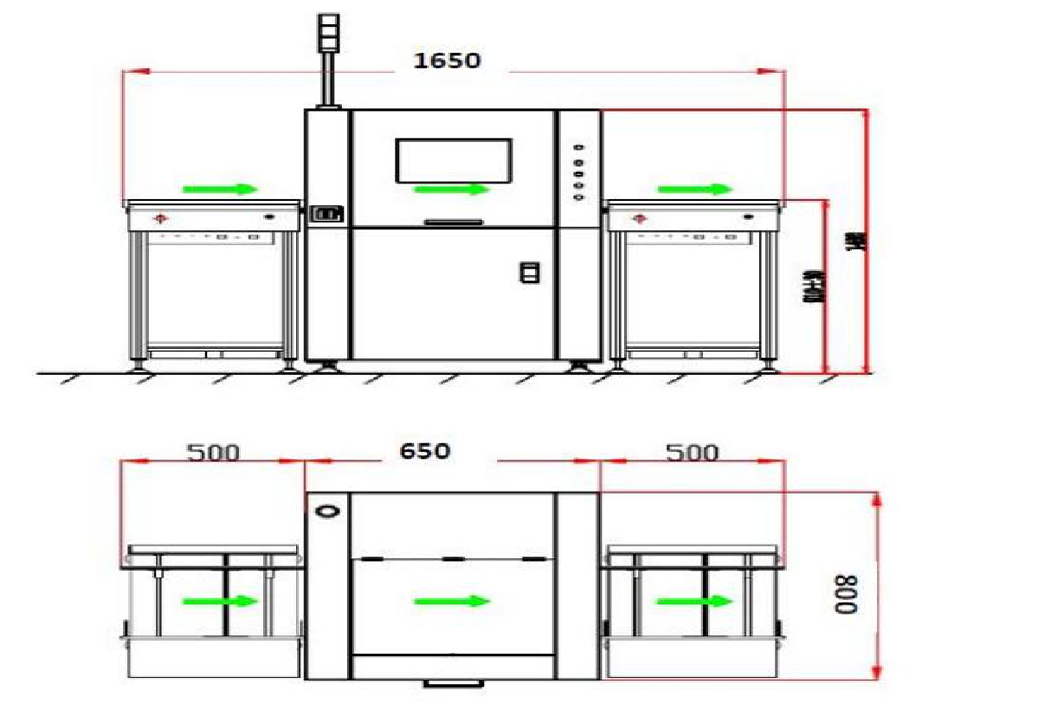

Layout diagram

• Operation mode: online

• Equipment dimensions: (mm) L900*W990*H1400 (Max)

• PCB size range: 50*50 to 330*330mm

• PCB thickness: 0.4~5mm

• Single track: Single track (with automatic width adjustment)

• Corresponding product: meets the mounting requirements of paper labels for PCBs

• Pickup accuracy: ±0.1mm Mounting accuracy: ±0.1mm

• Repeat accuracy: ±0.05mm

• Mounting angle: meets requirements for different mounting angles from 0° to 360°

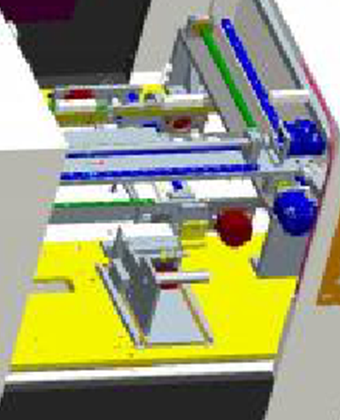

• Supply Feida: 2 pieces

• Nozzle quantity: 2

• MES functions: Personalized MES integration (open communication ports, provide communication protocols)

• Adjustable mounting position: meets requirements for mounting at over 50 locations.

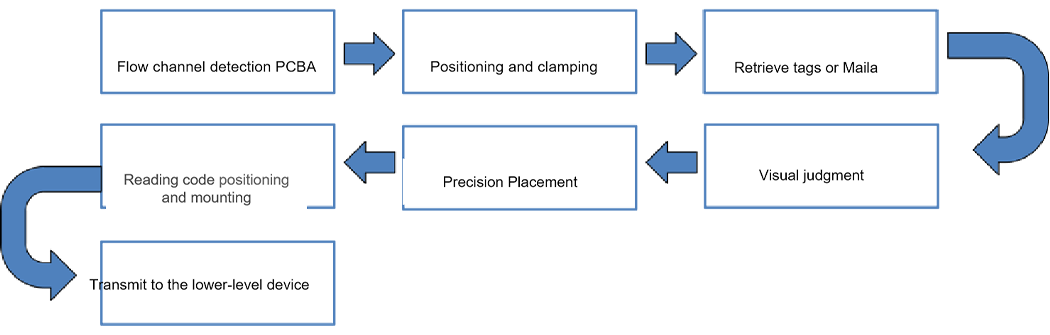

Working Principle

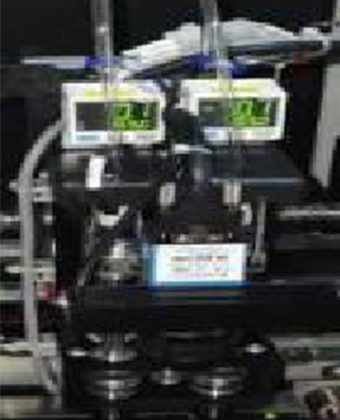

Equipment Details

Equipment Configuration

• Track 1 set; X-axis 1 set; Y-axis 1 set; Z-axis 2 sets; Angle 2 sets; Label peeling 2 sets; Automatic width adjustment 1 set; PCB clamping 1 set.

• X, Y, Z axes adopt Japanese Fuji servo motors, while the angle adopts Japanese Shinan stepper motors, featuring high speed and precision.

• Equipped with independent double sticker structure, Labeling speed is fast.

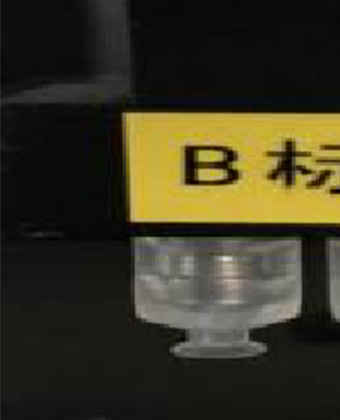

• Flexible suction nozzle structure, short model changeover time.

• Control method: control card + computer + monitor.

• The lead screws and guide rails all use the imported TBI brand from Taiwan.

• Photoelectric switches, switching power supplies, and other electronic products all use OMRON brand.

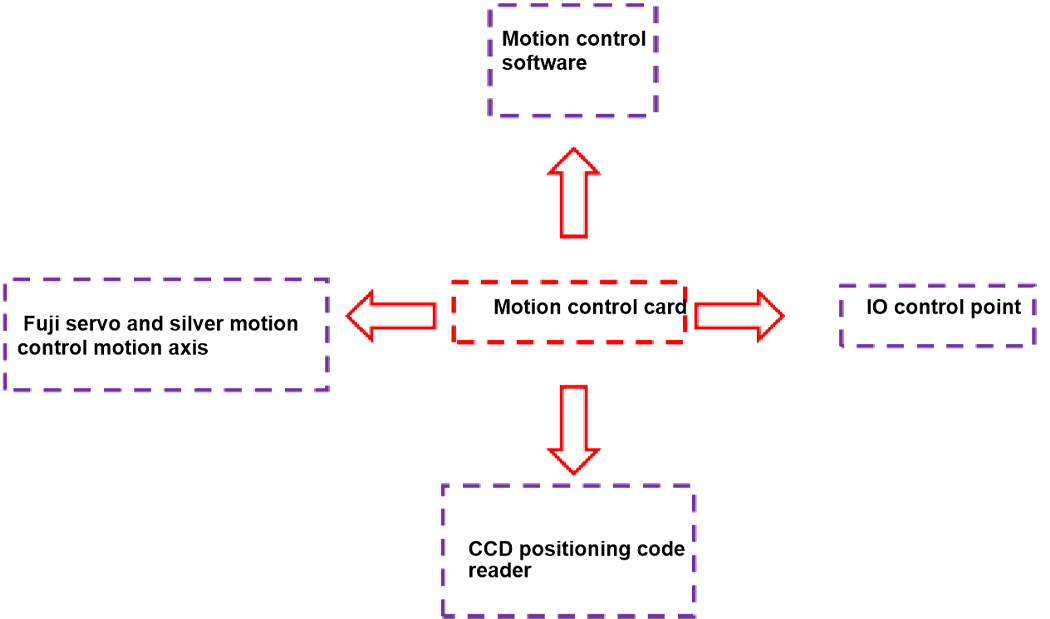

Equipment Control System

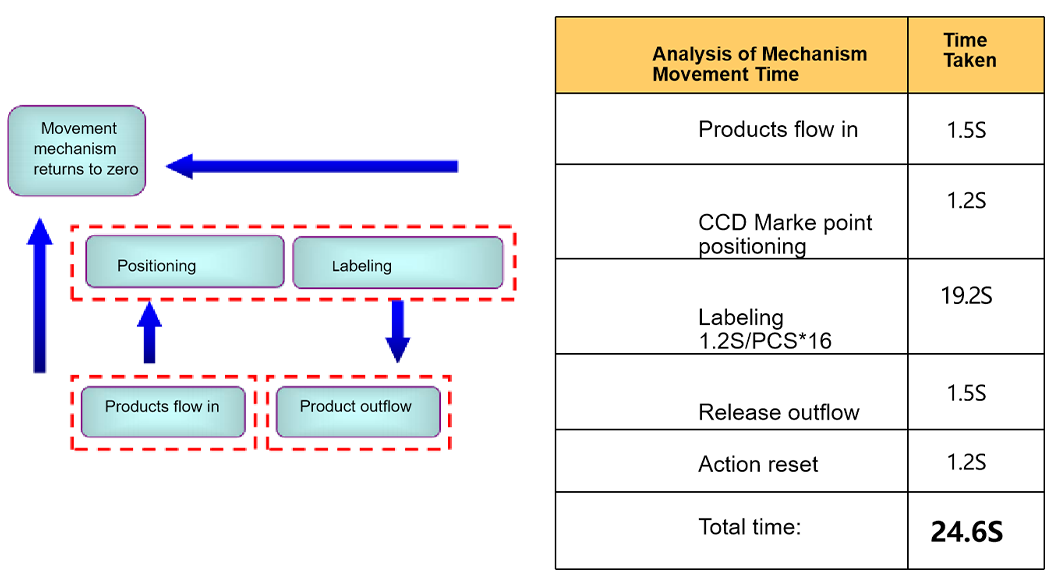

Device Actions And Timing Sequences

Device development progress evaluation

Instructions﹕As shown above, the development cycle for the first device is 30 working days from receiving the requirements. The delivery time for batch production of 10 units is 30 days.

Fully Automatic Online Labeling Machine

Mainly designed this piece of equipment to put labels on PCB boards.
